Making a Toilet Paper Holder with a Phone Stand



Watch the 4 minute video or read on for step by step instructions on making your own fancy toilet paper holder!

We started out by cutting to length one inch (1”) square steel tubing using our angle grinder.

This piece will be used as the wall bracket that mounts against the wall and also holds the shelf and toilet paper roll holder rod.

1. Grinder.jpg

Using the bandsaw, we cut one face off the square steel tube to make a “C” channel. You can just buy a C channel steel to skip this step, but we had scrap square tubing to use for this project.

2. c channel.jpg

Using the drill press, we drilled two (2) holes on the face opposite the opening to use as mounting holes to the wall and two (2) holes on the adjacent face to secure the wood shelf shown in the steps below

3. Drilling holes in steel.jpg

We used a 120grit flap disc on our angle grinder to deburr the holes and clean the mill scale off the steel.

Love this angle grinder!

Love this angle grinder!

Now that the wall bracket is complete, we sketched a simple holder design on some scrap plywood.

We added screws along the inside profile of the design to use as anchoring points to bend the aluminum rod.

5. jig.jpg

Using a ¼” aluminum rod, we clamped one end to the fixture and bent the rod around the screws making sure to align with the shape.

6. bending.jpg

We drilled out a coupling nut so the aluminum rod can slide through without binding then hammered the end of the aluminum rod so the mushroom head can keep it from sliding off the coupling nut.

We then welded the assembly to the mounting bracket we made earlier.

7. welding.jpg

Using our miter saw, we cut a piece of walnut to length. It was about three inches wide, eight inches long, and one inch thick.

8. wood.jpg

We applied sealer wax to the walnut and spray painted clear coat on the steel mounting bracket.

We like the modern look of the raw steel against the dark wood.

9. assembly.jpg

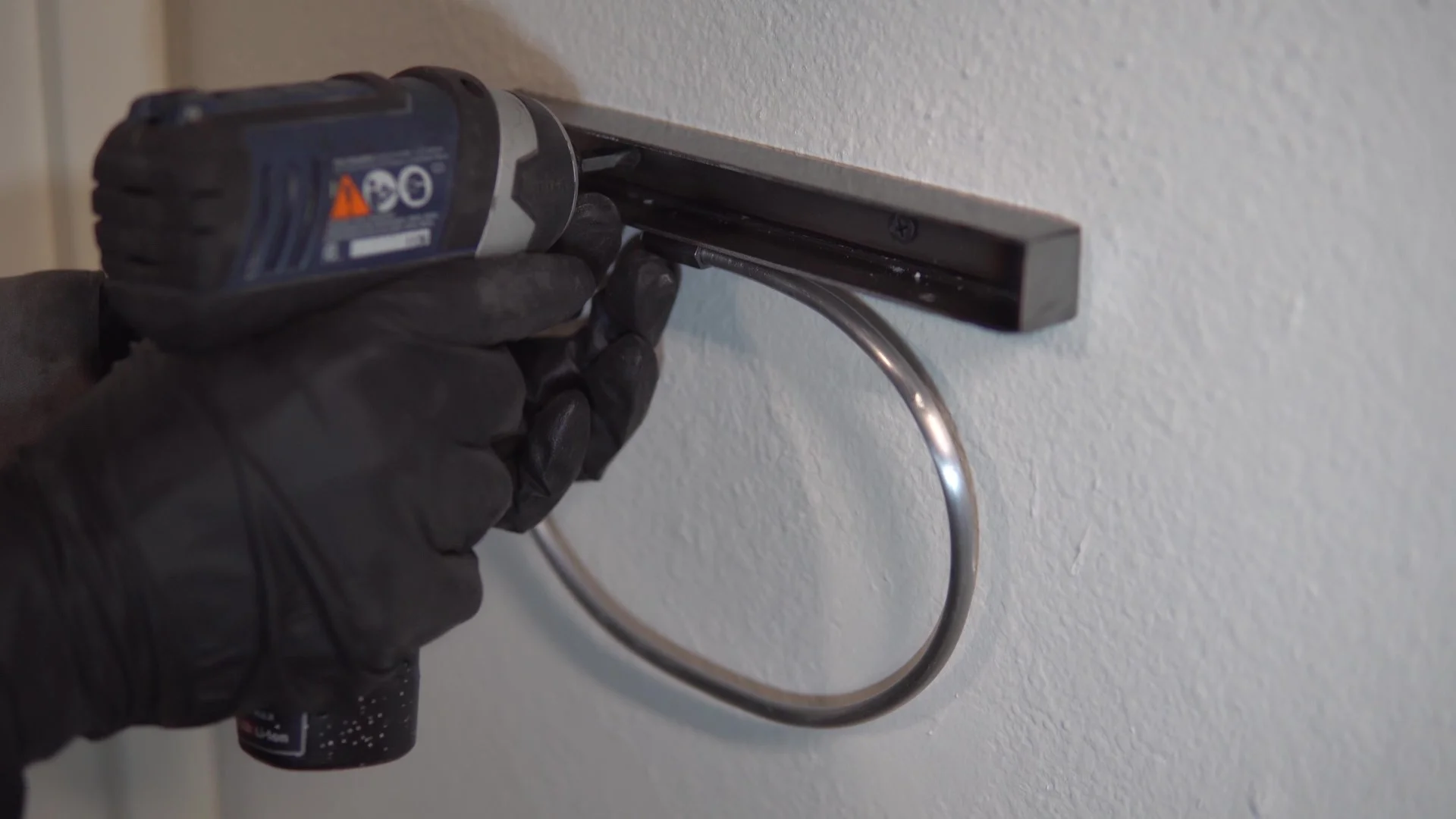

To install we first screw the mounting bracket to the wall.

10. install.jpg

Then the wood shelf slides and and screws secure from the bottom.

11. Final.jpg

Voila! A fancy toilet paper holder to wow all your bathroom guests. The shelf is handy for holding phones, candles, potpourri - whatever you want! The slip on toilet paper holder is a LIFE CHANGER for those who hate changing the TP.
